●We are a high-tech enterprise integrating R&D manufacture and sales. Top5 Manufacturer, Can offer to OEM,ODM, Custom service.
●Competitive Prices, Short Delivery time
●Sample Order Accepted
• It is convenient for equipment integration and installation.
• Encoding switch digital control output size, convenient and durable.
• Equipped with short-circuit, overvoltage, overcurrent, overvoltage, and reverse polarity protection functions.
• Standard configuration of RS232, RS485, and USB serial communication, supporting MODBUS RTU protocol, achieving automated control.
-
Product Catalog
-
User Manual
-
Product Application Materials
-
Product Video

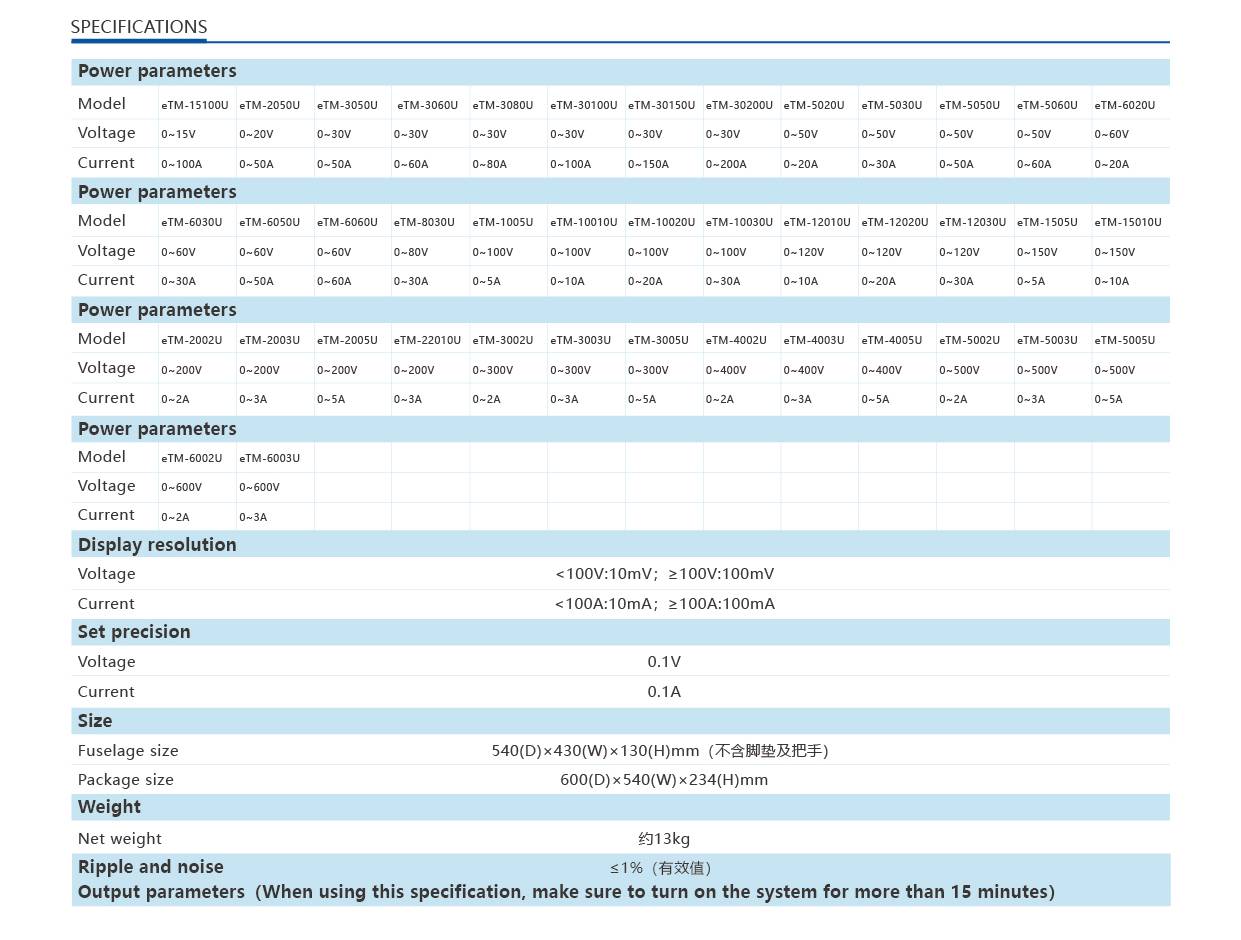

Product Model List
Can slide left and right to view the complete table
| Model | Voltage | Current | Resolution | Precision | Interface |
|---|---|---|---|---|---|
| eTM-4002U | 0~400V | 0~2A | Voltage resolution: ＜ 100V: 10mV ≥ 100V: 100mV; Current resolution: ＜ 100A: 10mA ≥ 100A: 100mA; Power resolution: ＜ 10W: 1mW ≥ 10W: 10mW ≥ 100W: 0.1W ≥ 1000W: 1W; Load equivalent resistance display resolution: ＜ 10R: 1mR ≥ 10R: 10mR ≥ 100R: 0.1R ≥ 1000R: 1R | 0.1V；0.1A | Standard SNESE; Standard configuration of 232, 485, and USB serial ports (one out of three cannot be used simultaneously); Modbus protocol |
| eTM-4003U | 0~400V | 0~3A | Voltage resolution: ＜ 100V: 10mV ≥ 100V: 100mV; Current resolution: ＜ 100A: 10mA ≥ 100A: 100mA; Power resolution: ＜ 10W: 1mW ≥ 10W: 10mW ≥ 100W: 0.1W ≥ 1000W: 1W; Load equivalent resistance display resolution: ＜ 10R: 1mR ≥ 10R: 10mR ≥ 100R: 0.1R ≥ 1000R: 1R | 0.1V；0.1A | Standard SNESE; Standard configuration of 232, 485, and USB serial ports (one out of three cannot be used simultaneously); Modbus protocol |
| eTM-4005U | 0~400V | 0~5A | Voltage resolution: ＜ 100V: 10mV ≥ 100V: 100mV; Current resolution: ＜ 100A: 10mA ≥ 100A: 100mA; Power resolution: ＜ 10W: 1mW ≥ 10W: 10mW ≥ 100W: 0.1W ≥ 1000W: 1W; Load equivalent resistance display resolution: ＜ 10R: 1mR ≥ 10R: 10mR ≥ 100R: 0.1R ≥ 1000R: 1R | 0.1V；0.1A | Standard SNESE; Standard configuration of 232, 485, and USB serial ports (one out of three cannot be used simultaneously); Modbus protocol |
| eTM-40010U | 0~400V | 0~10A | Voltage resolution: ＜ 100V: 10mV ≥ 100V: 100mV; Current resolution: ＜ 100A: 10mA ≥ 100A: 100mA; Power resolution: ＜ 10W: 1mW ≥ 10W: 10mW ≥ 100W: 0.1W ≥ 1000W: 1W; Load equivalent resistance display resolution: ＜ 10R: 1mR ≥ 10R: 10mR ≥ 100R: 0.1R ≥ 1000R: 1R | 0.1V；0.1A | Standard SNESE; Standard configuration of 232, 485, and USB serial ports (one out of three cannot be used simultaneously); Modbus protocol |
| eTM-5002U | 0~500V | 0~2A | Voltage resolution: ＜ 100V: 10mV ≥ 100V: 100mV; Current resolution: ＜ 100A: 10mA ≥ 100A: 100mA; Power resolution: ＜ 10W: 1mW ≥ 10W: 10mW ≥ 100W: 0.1W ≥ 1000W: 1W; Load equivalent resistance display resolution: ＜ 10R: 1mR ≥ 10R: 10mR ≥ 100R: 0.1R ≥ 1000R: 1R | 0.1V；0.1A | Standard SNESE; Standard configuration of 232, 485, and USB serial ports (one out of three cannot be used simultaneously); Modbus protocol |
| eTM-5003U | 0~500V | 0~3A | Voltage resolution: ＜ 100V: 10mV ≥ 100V: 100mV; Current resolution: ＜ 100A: 10mA ≥ 100A: 100mA; Power resolution: ＜ 10W: 1mW ≥ 10W: 10mW ≥ 100W: 0.1W ≥ 1000W: 1W; Load equivalent resistance display resolution: ＜ 10R: 1mR ≥ 10R: 10mR ≥ 100R: 0.1R ≥ 1000R: 1R | 0.1V；0.1A | Standard SNESE; Standard configuration of 232, 485, and USB serial ports (one out of three cannot be used simultaneously); Modbus protocol |
| eTM-5005U | 0~500V | 0~5A | Voltage resolution: ＜ 100V: 10mV ≥ 100V: 100mV; Current resolution: ＜ 100A: 10mA ≥ 100A: 100mA; Power resolution: ＜ 10W: 1mW ≥ 10W: 10mW ≥ 100W: 0.1W ≥ 1000W: 1W; Load equivalent resistance display resolution: ＜ 10R: 1mR ≥ 10R: 10mR ≥ 100R: 0.1R ≥ 1000R: 1R | 0.1V；0.1A | Standard SNESE; Standard configuration of 232, 485, and USB serial ports (one out of three cannot be used simultaneously); Modbus protocol |
| eTM-50010U | 0~500V | 0~10A | Voltage resolution: ＜ 100V: 10mV ≥ 100V: 100mV; Current resolution: ＜ 100A: 10mA ≥ 100A: 100mA; Power resolution: ＜ 10W: 1mW ≥ 10W: 10mW ≥ 100W: 0.1W ≥ 1000W: 1W; Load equivalent resistance display resolution: ＜ 10R: 1mR ≥ 10R: 10mR ≥ 100R: 0.1R ≥ 1000R: 1R | 0.1V；0.1A | Standard SNESE; Standard configuration of 232, 485, and USB serial ports (one out of three cannot be used simultaneously); Modbus protocol |
Product Functions and Advantages
1.We are a high-tech enterprise integrating R&D manufacture and sales. Top5 Manufacturer, Can offer to OEM,ODM, Custom service.
2.DC power supply also called as Bench Power Supplies, a Variable DC Power Supplies.
3.We focuse on DC power supply，Programmable power supply， Variable power supply， Benchtop power supply，Adjustable power supply，Lab power supply， Linear power supply ，High precision power supply, Regulated power supply etc.
4.We specialize in creating optimized solutions for unique applications.
5.Whether you are an electronics hobbyist, a DIYer or a professional electronics engineer, lab technicians, a DC Power Supply is a must have tool on your workbench.
6.Whether for one-time, custom, multi-rack platforms, or for high-volume OEM ODM Power Supply, we’re able to meet the needs of a variety of engineering and manufacturing needs.
Application Scene
Circuit Testing
Mobilephome repaire
Equipmrnt ageing
Lighting testing
Lab Dc power supply
School and University teaching
Advance
【High quality and basic safety】DC regulated power supply with adjustable reliability and safety, supporting overvoltage protection (OVP), overcurrent protection (OCP), overpower protection (OPP), overtemperature protection (OTP), and short-circuit protection.
【ON/OFF switch】You can set the voltage and current without applying the power supply for the load, which could avoid damage to the equipment when you forget to disconnect the output and effectively improve your experimental efficiency.
【Extensive application】Widely used in cabinet equipment integration, product aging testing, battery charging, experimental testing, production testing, electrolytic plating and other industries;
